How to Choose an RV Solar Kit Without Wasting Money, Battery Capacity, or Roof Space
An RV solar kit can completely change how you travel — but only when it’s designed around how you actually camp.
Most RV solar disappointments are not caused by bad equipment.
They happen because the system didn’t match:
- real energy use
- roof limitations
- battery capacity
- shade conditions
Solar works extremely well on RVs — when expectations match physics.
This guide explains how RV solar systems behave in real conditions so you can build a setup that delivers quiet, reliable power instead of daily battery anxiety.
Quick Verdict
- Best for most RVers: 300–600W roof system + MPPT + lithium
- Best for weekend trips: 200–300W + small lithium bank
- Best for boondocking: 400–800W + serious storage
- Best for flexibility: roof + portable hybrid
- Safest budget path: start smaller, expand later
⚠️ Hard Failure Example (RV Edition)
A very common failed setup looks like this:
- 400W solar
- single lead-acid battery
- compressor fridge
- cloudy campsite
By day two:
- battery hits low voltage
- fridge shuts off
- off-grid solar kit
- generator comes out
- trip becomes power management
On paper, the system looked capable.
In reality, battery capacity — not panel wattage — was the bottleneck.
RV solar success is about balance, not maximum panels.

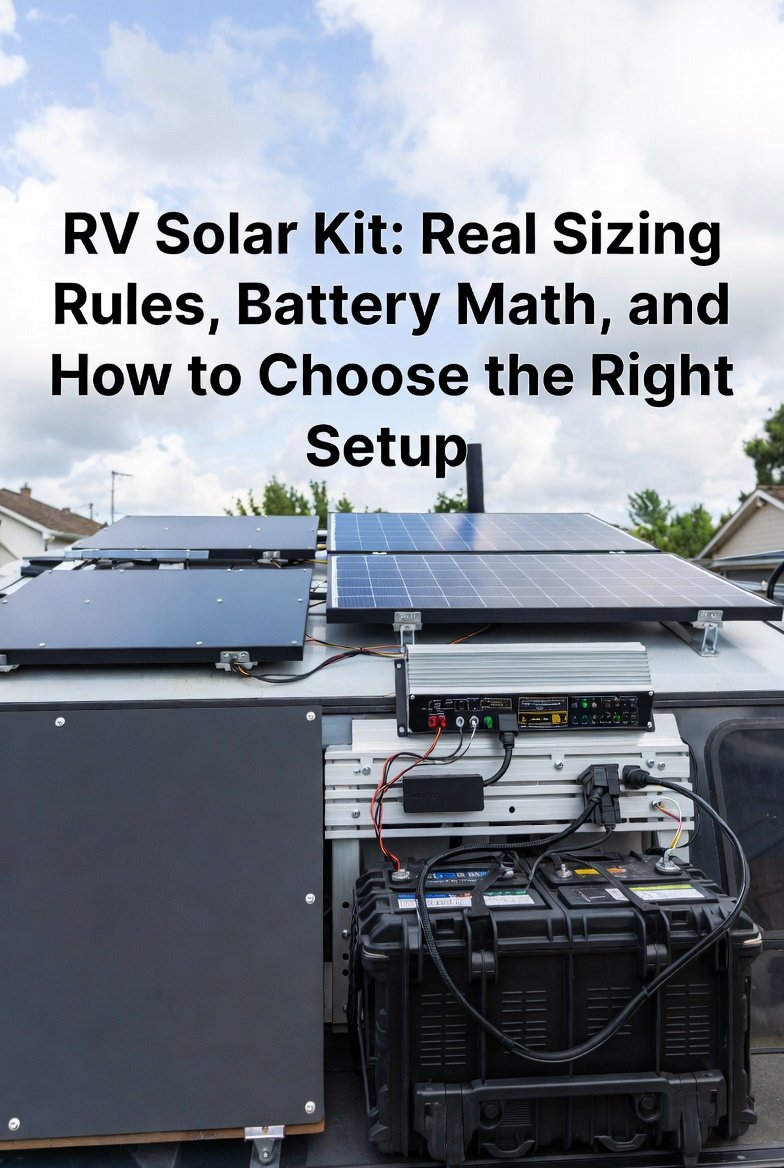

What an RV Solar Kit Actually Includes
A real system consists of:
✔ solar panels
✔ charge controller (preferably MPPT)
✔ battery bank
✔ inverter (if AC needed)
✔ wiring + fusing
✔ mounting hardware
✔ optional monitoring
Missing any one of these can limit performance — or create safety risk.
Step 1 — Define Your Camping Style (More Important Than Wattage)
Before buying panels, define usage.
Typical Profiles
Weekend campers
- lights
- phones
- water pump
Boondockers
- fridge
- fans
- devices
- occasional microwave
Full-time RVers
- electronics
- refrigeration
- daily loads
Your solar kit must match energy behavior — not ambition.
Step 2 — How Much Solar Fits on an RV?
Roof space is the real limiter.
Typical ranges:
RV Type | Solar Range |
Small trailers | 200–400W |
Mid-size rigs | 400–800W |
Large Class A | 800–1,200W |
Vents, antennas, and A/C units reduce usable space faster than most buyers expect.
Balanced RV Solar Sizing
Use Case | Panels | Battery | Inverter |
Weekend | 200–300W | 1–2 kWh | Optional |
Boondocking | 400–600W | 2–4 kWh | 1–2kW |
Full-time | 600–1,000W | 4–8 kWh | 2–3kW |
Balance matters more than raw wattage.
Too many panels with too little battery still fails.
Roof vs Portable Panels
Roof-Mounted
Pros
- always charging
- no setup
- theft-resistant
Cons
- shade kills output
- fixed angle
Portable Panels
Pros
- chase sunlight
- work while parked in shade
Cons
- setup time
- storage
- cable management
👉 The smartest configuration for many RVers is hybrid:
Roof = baseline power
Portable = opportunistic charging
MPPT vs PWM — Why MPPT Usually Wins
When roof space is limited, efficiency matters.
Feature | MPPT | PWM |
Efficiency | Higher | Lower |
Flexibility | Greater | Limited |
Cold performance | Better | Worse |
MPPT extracts more usable power from the same roof.
That alone often justifies the cost.
Step 3 — Battery Strategy (Where Freedom Actually Comes From)
Your battery determines how long you can stay unplugged.
Lithium (Preferred)
✔ 80–90% usable capacity
✔ lightweight
✔ fast charging
✔ long lifespan
AGM / Lead-Acid
- ~50% usable
- heavier
- shorter lifespan
Lithium batteries dramatically reduces generator dependence — though it does not eliminate it.
Do You Need an Inverter?
Only if running AC appliances.
Common loads:
- microwave
- coffee maker
- laptops
- entertainment
Typical sizes:
- light use → 1,000–1,500W
- heavier → 2,000–3,000W
Surge rating matters more than average draw.
Safety Basics (Do Not Skip)
RV electrical fires are rare — but almost always preventable.
Core rules:
✔ fuse near battery
✔ correct wire gauge
✔ secure roof penetrations
✔ use certified components
Look for UL-listed equipment whenever possible — certification signals tested electrical safety.
Battery Monitoring — The Most Skipped Upgrade
Voltage alone is misleading.
A shunt monitor shows:
- true state of charge
- real consumption
- charging rates
This transforms guessing into planning.
Generator Integration Is Normal
Even excellent RV solar systems benefit from generators.
Example:
3 cloudy days → battery near 40% → generator runs briefly → batteries protected.
Solar reduces generator runtime.
It rarely eliminates it entirely.
RV Solar Kit Cost (Reality Ranges)
System | Typical Cost |
Starter | $800–$1,500 |
Mid-range | $1,500–$3,000 |
Large | $3,000–$6,000+ |
Battery chemistry is usually the largest cost driver.
Cheapest rarely equals most reliable.
Most Common RV Solar Mistakes
- oversizing panels without storage
- ignoring shade
- buying cheap controllers
- skipping monitoring
- underestimating inverter surge
Every one leads to frustration.
Not freedom.
Limitations Buyers Underestimate
- roof space caps system size
- winter sun is weaker
- A/C is extremely demanding
- generators remain useful
Solar charger works best when expectations match reality.
Who This Guide Is NOT For
This guide is not for:
- occasional campground users always plugged into shore power
- buyers expecting residential-level electricity
- anyone unwilling to plan energy usage
RV solar invertor is about independence — not unlimited consumption.
Final Decision Framework
Choose an RV solar kit that:
✔ matches camping style
✔ fits roof constraints
✔ uses MPPT
✔ includes RV lithium
✔ allows expansion
Do this, and your system will quietly power your travels for years.
Exactly what good infrastructure should do.
